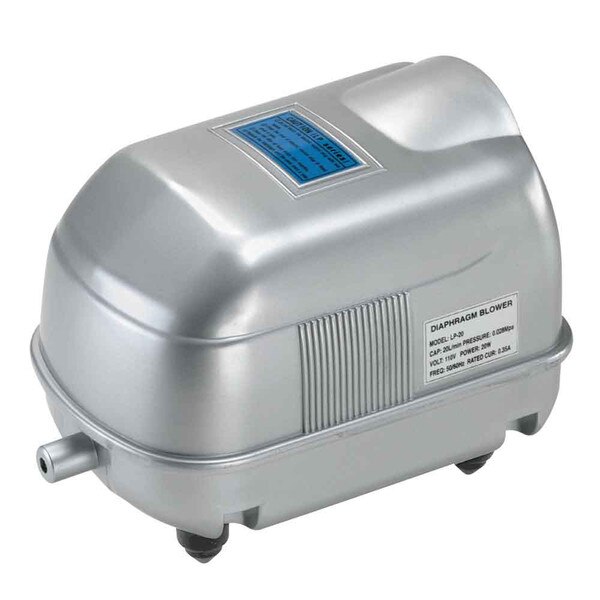

Pondmaster AP-20 Pond Air Pump - 1700 cu. in./min.
$119.99
SKU: 218994
Manufacturer: Danner
MPN: 04520
Shop in Retail Store
Ship to Home
Ship to Lancaster, Pa Store
Details
This pump has enough uses to drive your water year-round. It is durable and useful enough to become a vital part of your aquarium and pond tool-box for years to come! Ideal for aerating large aquariums or ponds, improving fish health through improved oxygenation, powering a skimmer, or keeping outdoor ponds from freezing over completely. Durable design holds up well to the pounding of the outdoors, while quiet operation allows it to blend well into your aquarium setup or backyard. Includes a 6 ft. power cord.
Pond applications:
Connect one end of a length of hose to the outlet on the pump. Hose length is the distance from the permanent location of the pump to the water's edge plus the depth of the water. (Note: a short section of hose and 2 clamps are included - these parts are for aquarium installations and should be disregarded if pump is to be used on a pond).
Connect the supplied barbed diffuser to the other end of the hose.
The diffuser needs to be weighted since it is very buoyant when filled with air. Attach the diffuser and about 4" of hose to a heavy object, such as a brick or rock, with a cable tie. (Do not use a weight that will rust or leach toxic substances.)
Locate pump in a protected area. It should be covered to shelter it from rain and the elements. Be sure to allow for ventilation. Locate pump so that it can not fall in to the water.
Note:
In winter, damp air can condense onto the inside wall and freeze the hose. This can eventually block the hose completely, therefore it is important to check frequently during periods of freezing temperatures.
Aquarium applications:
Connect one end of the short length of included hose to the outlet on the pump and fasten with the included hose clamp.
Connect the supplied barbed diffuser to the other end of the hose and fasten with the included hose clamp.
Run a length of airline hose from each of the 14 outlet barbs on the diffuser to the aquarium and connect each to an airstone.
If the air flow is too great, purchase and install an adjustable flow valve for each affected airline. Always let some air escape, do not restrict the flow of air totally with the valve.
Maintenance:
When airflow slows down, it is time to change the diaphragms and flapper valves.
Disconnect the pump from the AC receptacle.
Remove the cover lid.
Unscrew the diaphragm/flapper combination assembly from either end of the pump and separate the 2 parts.
Remove the flapper valves and replace with the supplied parts. Be sure to maintain the same orientation of the flapper valves.
Remove the black, round dough nut-like diaphragm and replace with the supplied parts.
Replace the diaphragm/flapper valve.
Replace the cover lid.
Uses 5/8" tubing or 3/16" tubing with included diffuser
Using an air pump adds dissolved oxygen to your water, improving the overall health of your aquarium. For more information on aquarium aeration, please see our article on Air Pumps.
Pond applications:
Connect one end of a length of hose to the outlet on the pump. Hose length is the distance from the permanent location of the pump to the water's edge plus the depth of the water. (Note: a short section of hose and 2 clamps are included - these parts are for aquarium installations and should be disregarded if pump is to be used on a pond).
Connect the supplied barbed diffuser to the other end of the hose.
The diffuser needs to be weighted since it is very buoyant when filled with air. Attach the diffuser and about 4" of hose to a heavy object, such as a brick or rock, with a cable tie. (Do not use a weight that will rust or leach toxic substances.)
Locate pump in a protected area. It should be covered to shelter it from rain and the elements. Be sure to allow for ventilation. Locate pump so that it can not fall in to the water.
Note:
In winter, damp air can condense onto the inside wall and freeze the hose. This can eventually block the hose completely, therefore it is important to check frequently during periods of freezing temperatures.
Aquarium applications:
Connect one end of the short length of included hose to the outlet on the pump and fasten with the included hose clamp.
Connect the supplied barbed diffuser to the other end of the hose and fasten with the included hose clamp.
Run a length of airline hose from each of the 14 outlet barbs on the diffuser to the aquarium and connect each to an airstone.
If the air flow is too great, purchase and install an adjustable flow valve for each affected airline. Always let some air escape, do not restrict the flow of air totally with the valve.
Maintenance:
When airflow slows down, it is time to change the diaphragms and flapper valves.
Disconnect the pump from the AC receptacle.
Remove the cover lid.
Unscrew the diaphragm/flapper combination assembly from either end of the pump and separate the 2 parts.
Remove the flapper valves and replace with the supplied parts. Be sure to maintain the same orientation of the flapper valves.
Remove the black, round dough nut-like diaphragm and replace with the supplied parts.
Replace the diaphragm/flapper valve.
Replace the cover lid.
Uses 5/8" tubing or 3/16" tubing with included diffuser
Using an air pump adds dissolved oxygen to your water, improving the overall health of your aquarium. For more information on aquarium aeration, please see our article on Air Pumps.
Specifications
Specifications | |
MPN | 04520 |
Manufacturer | Danner |
Internal Id | 25385 |
Instructions
For complete product information, download the product manual.
